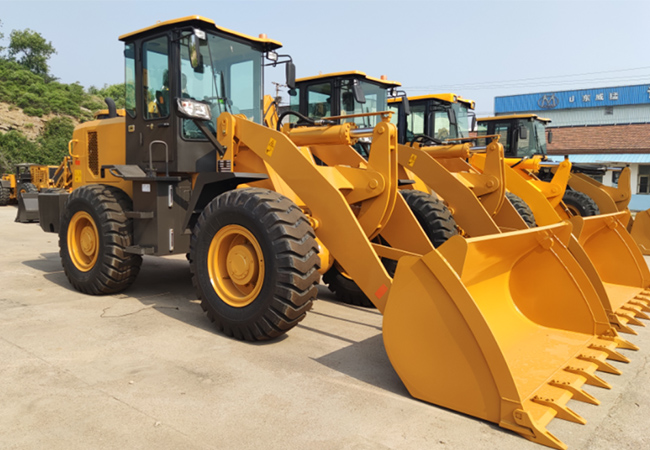

main performance parameters of SHANMON46 loader
| Performance | 1 | rated loading | 4000kg |
| 2 | overall weight | 11000kg | |
| 3 | rated bucket capacity | 2m³ | |
| 4 | maximum tractive force | 105KN | |
| 5 | maximum breakout force | 110KN | |
| 6 | maximum grade ability | 30℃ | |
| 7 | maximum dump height | 3200mm | |
| 8 | maximum dump reach | 1100mm | |
| 9 | overall dimension (L×W×H) | 7230*2520*3250mm | |
| 10 | minimum turning radius | 6400mm | |
| Engine | 11 | model | WP6T175E221 |
| 12 | type | lnline water cooled, four stroke | |
| 14 | rated power | 129KW | |
| 15 | maximum torque | 500N.m | |
| 16 | min fuel-consume ratio | ≤210g/kw.h | |
|
Transmission system |
17 | torque converter | YJ315 |
| 18 | gearbox mode | Power shift normally engaged straight gear | |
| 19 | gear shift | 4forward shift 2 reverse shift | |
| 20 | maximum speed | 40km/h | |
| Drive axles | 21 | main reducing mode | Bevel gear grade lreduction |
| 22 | decelerating mode | Bevel gear grade lreduction | |
| 23 | wheel base (mm) | 2750mm | |
| 24 | wheel tread | 1850mm | |
| 25 | ground clearance | 400mm | |
|
Hydraulic system |
26 | system working pressure | 16.5Mpa |
| 27 | boom lifting time | 4.83s | |
| 28 | total time | 9.15s±0.5s | |
| 29 | fuel tank capacity | 130L | |
| 30 | function of leveling automatically | yes | |
| Tyre | 34 | type specification | 20.5-25 |
