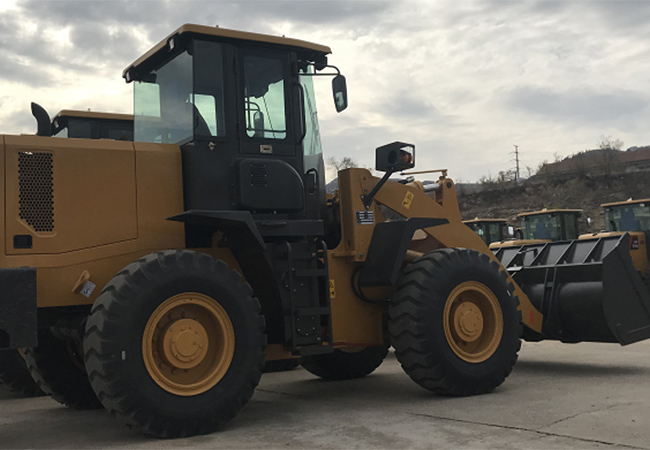

main performance parameters of Wheel Loader SHANMON 936
| erformance | 1 | rated loading | 3000kg | |
| 2 | overall weight | 10200kg | ||
| 3 | rated bucket capacity | 1.8m3 | ||
| 4 | maximum tractive force | 97KN | ||
| 5 | maximum breakout force | 127KN | ||
| 6 | maximum grade ability | 30℃ | ||
| 7 | maximum dump height | 3100mm | ||
| 8 | maximum dump reach | 1006mm | ||
| 9 | overall dimension (L×W×H) | 7820*2560*3280mm | 3.6 | |
| 10 | minimum turning radius | 5250mm | ||
| Engine | 11 | model | WEICHAI WP6G125E22 | |
| 12 | type | lnline water cooled, four stroke | ||
| 13 | -×No. of cylinder-bore/stroke | 6—108×125mm | ||
| 14 | rated power | 92kw | ||
| 15 | maximum torque | 515N.m | ||
| 16 | min fuel-consume ratio | ≤210g/kw.h | ||
|
Transmission system |
17 | torque converter | YJ315—x | |
| 18 | gearbox mode | Power shift normally engaged straight gear | ||
| 19 | gear shift | 4forward shift 2 reverse shift | ||
| 20 | maximum speed | 40km/h | ||
| Drive axles | 21 | ： main reducing mode | Bevel gear grade lreduction | |
| 22 | decelerating mode | Bevel gear grade lreduction | ||
| 23 | wheel base (mm) | 2850mm | ||
| 24 | wheel tread | 1800mm | ||
| 25 | ground clearance | 400mm | ||
|
Hydraulic system |
26 | system working pressure | 16.5MPa | |
| 27 | boom lifting time | 4.83s | ||
| 28 | total time | 9.15s±0.5s | ||
| 29 | fuel tank capacity | 156L | ||
| 30 |
function of leveling automatically |
yes | ||
|
Brake system |
31 | service brake | air assist disc brake on 4 wheels | |
| 32 | parking brake | Manual disk brake | ||
|
Tyre |
33 | type specification | 17.5-25 | |
| 34 | front tyre pressure | 0.4Mpa | ||
| 35 | rear tyre pressure | 0.35Mpa | ||
