BASIC INFORMATION
| model: | ZZ1047D3414D145 | type: | light truck |
| Drive form: | 4X2 | Wheelbase: | 3360mm |
| Body length: | 5.995 meters | Body width: | 2.15 meters |
| Body height: | 2.45 meters | Wheelbase: | Front track: 1605; rear track: 1540mm |
| Vehicle weight: | 2.315 tons | Rated load: | 1.985 tons |
| Total mass: | 4.495 tons | Maximum speed: | 90.0km/h |
Engine
| engine: | Yunnei Power YN33CRD2 | Number of cylinders: | 4 |
| Fuel type: | diesel fuel | Displacement: | 3.298L |
| Emission Standards: | National IV/Euro IV | Maximum output power: | 75.0kW |
| Maximum horsepower: | 102 hp | Torque: | 265N·m |
| Maximum torque speed: | 1600-2400rpm | Rated speed: | 3200rpm |

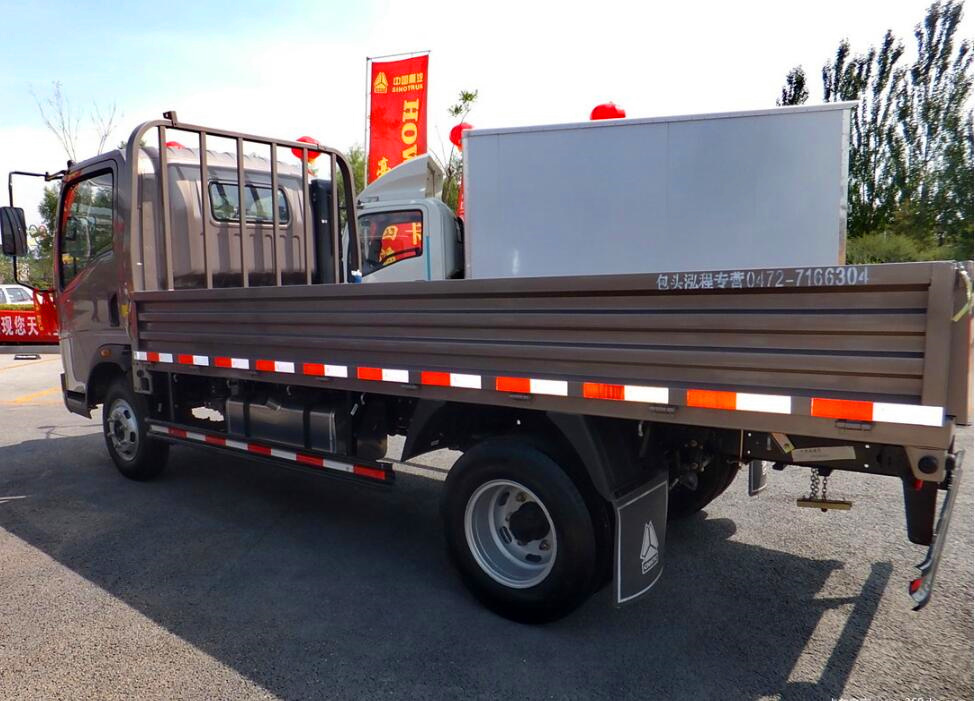

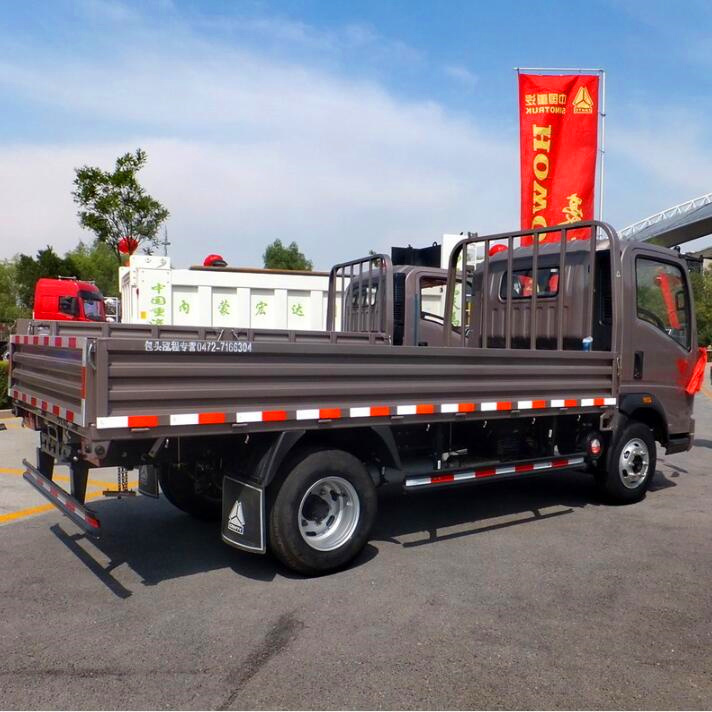

Cargo box parameters
| Cargo Length: | 4.2meter | Cargo width | 2.05米 |
| Cargo height: | 0.5meter | Cargo form | fence |

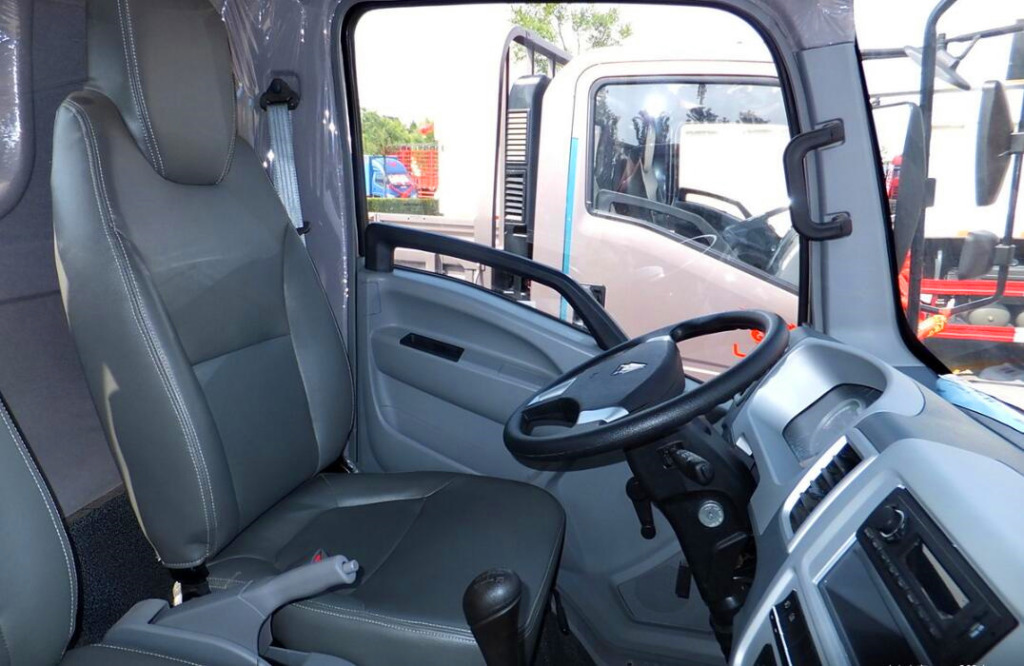

Cabin Parameter
| Passengers | 3Person | Seat Type | Single Row |
Gearbox
| Model | WLY6T100 | Forward | 6 |
| Reverse | 1 |
Tire
| No.of tires | 6 | Tire specification | 7.00R16 |
Chassis
| Front Axle | 2.2T | Rear Axle | 3.5T |
