Categories: HOWO
BASIC INFORMATION
| MODEL | ZZ5047CCYD3414B145 | DRIVE | 4X2 |
| Wheelbase | 3360mm | Body length: | 5996mm |
| Body width: | 2250mm | Body height: | 3350mm |
| Vehicle weight: | 2345kg | Rated load: | 1955mm |
| Total mass: | 4495kg | Maximum speed: | 90.0km/h |
| Origin | JINAN CHINA |
ENGINE
| Engine | Yunnei YN4102QBZL | Number of cylinders: | 4 |
| Fuel Type | diesel fuel | Displacement: | 2.977L |
| Emission standard: | National IV/Euro IV | Maximum output power: | 75.0kW |
| Maximum horsepower: | 102 hp | Torque: | 236N·m |
| Maximum torque speed: | 2000-2400rpm | Rated speed: | 3600rpm |

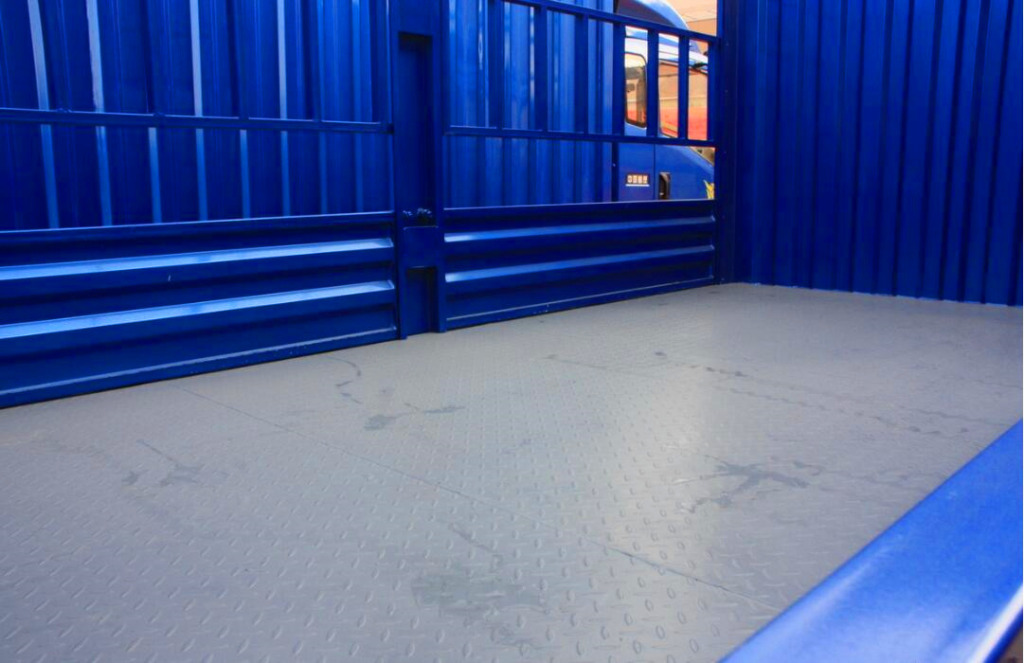

Cargo box parameters
| Cargo Length: | 3850mm | Cargo width: | 2050mm |
| Cargo height: | 2100mm | Cargo box form: | Fence Cargo |

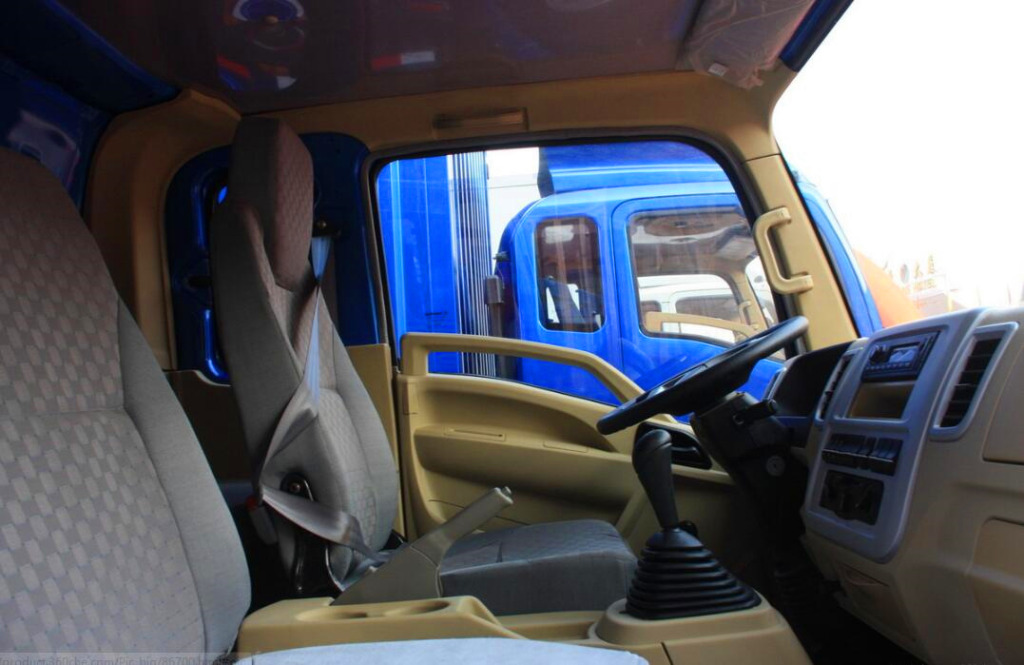

Cabin Parameters
| Passenger | 3 | Row | One and Half |
Gearbox
| Gearbox | HW35505TCL | Forward | 5 |
| Reverse | 1 |
Tire Parameters
| Tire Number | 6+1 | Tire Specification | 7.00R16LT-6PR |
Tank Parameter
| Tank capacity | 100L |
Suspension Parameter
| Rear axle | 4500 | Number of springs | 8/9+6 |
